Spektra 60

This uPVC profile range from Extruplast offers a minimalist design that suits both residential and commercial applications.

Construction depth: 60 mm
Number of internal chambers: 4

Spektra 70

The uPVC profiles from Extruplast Spektra 70 bring stylish, modern design with superior thermal and sound insulation.

Construction depth: 70 mm
Number of internal chambers: 6

Arkitek 70

Architectural elegance, excellent structural strength that enables massive areas of glazing of up to 8m2 and outstanding thermal insulation.

Construction depth: 70 mm
Number of internal chambers: 5

All types of openings.

Equipped with AGB or TGP hardware, windows produced with Extruplast profiles allow a complete range of openings.

Opening types: Specific applications and technical characteristics

The functionality of a window or door is mainly given by the chosen opening type. The windows that are manufactured with Extruplast profiles and equipped with AGB ARTech or TGP Forte allow all the opening types that are specific to a modern window.

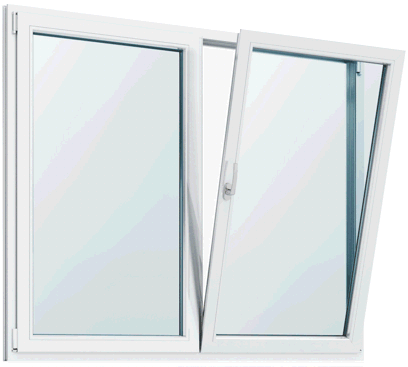

TILT AND TURN WINDOWS AND PATIO DOORS

Tilt and turn opening allows the window to be opened inwards and also in the ventilation position at a 15-20 angle from the vertical axis of the frame. The three positions are operated by one handle. When the handle is in the closed position, several locking points assure security and perfect sealing of the window.

MAXIMUM OPENING::

1.600 x 2.450 mm

MAXIMUM WEIGHT::

130 kg

TILT AND SLIDE WINDOWS AND PATIO DOORS

An ideal choice for a patio or terrace door, tilt and slide allows total opening of the window or door without encroaching into the internal space. The moving sash slides smoothly and effortlessly in parallel to the fixed frame. The tilt feature allows ventilation without having to fully open the doors. When left in the closed position, tilt and slide windows and doors ensure superb sealing due to their sash compression over the closing gaskets.

MAXIMUM OPENING:

2.000 x 2.370 mm

MAXIMUM WEIGHT:

200 kg

BI-FOLDING WINDOWS AND DOORS

Equipped with up to 7 folding panels, bi-fold windows and doors offer the advantage of a total opening – not being limited by any fixed panels or mullions – on the entire length of the space where it is installed. Thus, you can bring the joy and beauty of a summer day into your home, yet provide thermal protection and privacy when needed.

MAXIMUM OPENING:

900 x 2.450 mm/panel

NUMBER OF FOLDING PANELS:

3-7 (opening sides)

MAXIMUM WEIGHT:

130 kg

VERTICAL AND HORIZONTAL PIVOTING WINDOWS

The pivoting window has a tilting system that consists of a horizontal or vertical central axis that allows the sash to open at 90 around it. Being half indoors and half outdoors, the window is easy to clean, offers excellent luminosity and allows good ventilation of the room even during a rainy day.

MAXIMUM OPENING:

2.950 x 2.200 mm

MAXIMUM WEIGHT:

175 kg

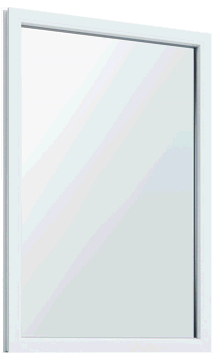

FIXED WINDOWS

Due to their narrow frame, fixed windows allow a larger area of glazing resulting in more natural light entering the room and are ideal for situations where it is not necessary/possible to install opening windows. Flexible and economical, fixed windows offer a wide range of decorative glass configurations that can be assembled in almost any shape.

MAXIMUM OPENING:

4.000 x 4.000 mm

MAXIMUM WEIGHT:

n/a
